SURESEAL TM
– Intumescent Seal
Product Description :
Intumescent Fire Seal is extruded from a graphite thermoplastic compound to various profile specially designed to meet the requirement of a particular applications. The intumescent are not affected by the humidity, temperature or water and provide much flexibility in many application.
Application :
| 1. | Intumescent Fire Seal, special profile are widely used to seal up gap between fire resistence steel door doors and frames in the event of fire. |
| 2. | Fire glazing apertures in fire resistence steel door and wooden door. |
| 3. | Fire Resistence steel cabinet, Strong Box, Safe Door, Vault Door, Door Viewer and etc. |
Characteristics :
| Thickness | : ±2mm |
| Expansion Rate | : Up to ±20 times original size. |
| Expansion Temperature | : Aggressive expansion from 160°C to 180°C. |
| Flammability | : Does not sustain flame. |
| Toxicity | : Non Toxic in solid form. |
| Reaction to water | : No property change when immersed in water. |
| UV and ozone resistance | : Excellent. |
| Paintable | : Yes. |
| Flexibility | : Yes. |
|

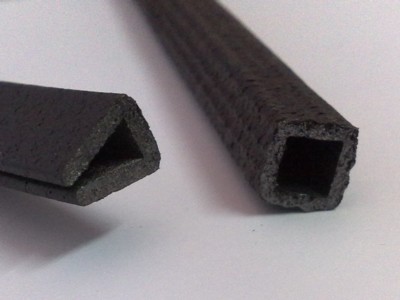

Standard Profile :
Custom make profile service are available and profile design are not limited to below.
- 12mm wd x 11.5mm ht x 2mm thk x 2.1m lg Square Profile.
- 15mm wd x 20mm ht x 2mm thk x 50m lg U Profile.
|
